Why Skirting Type Heating?

It is a newly developed space heater that is healthy, energy-saving, aesthetic and suitable for interior decoration and occupying little space. It is the newest space heater used in Western Europe and America.

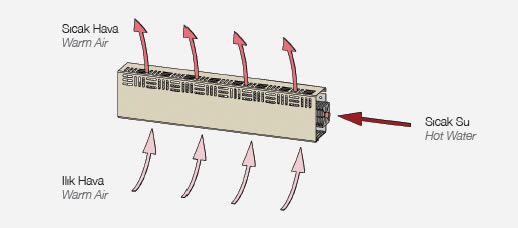

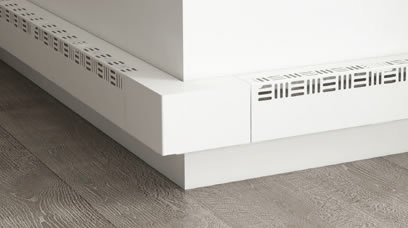

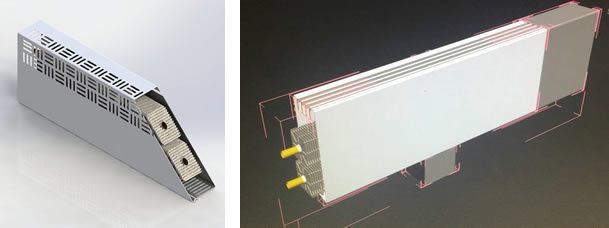

The main element in the radiator is high heat conductive aluminum finned copper tube. It is a linear and skirting-type radiator with narrow section.

The COMFORHEAT

radiator is designed and manufactured by expert engineers with the latest technology.

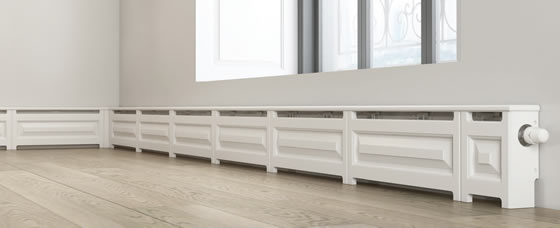

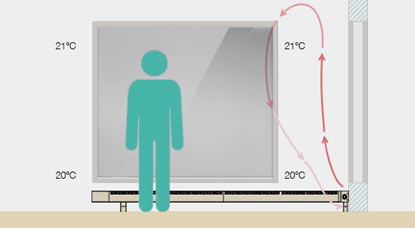

The coldest surface between the floor, ceiling and walls of the space (room) is the outer walls. Therefore, the most suitable place to install, in terms of the health and heat transfer of the radiator, is along bottom edge of the outer walls as shown in the figure. Thus, the COMFORHEAT

radiator makes the temperature distribution in the space more uniform compared to the other heating systems providing an overall more comfortable environment.

The high and stable heat conduction and heat insulation in our product COMFORHEAT

radiator has been registered as a utility model with the number 2017/19824 by the Turkish Patent and Trademark Institution in order to protect its two main features.

The heat transfer surface area between the hot water in the COMFORHEAT

radiator and ambient air is larger compared to other heaters, which allows the use of a lower average water temperature. Thus, the boiler operates with higher efficiency and saves energy.

The low average water temperature lowers the brightness temperature of the radiator, thus our product provides a healthier and more comfortable room environment and improves humidity of surroundings.

Due to the absence of a fan in the COMFORHEAT

radiator and low natural convection, accumulation of allergens and dust is kept to minimal level and the radiator works quietly.

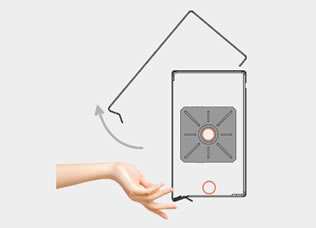

For easy maintenance and cleaning of the radiator, the cover can be removed easily and effortlessly.

Since the water and metal mass of the COMFORHEAT

radiator is smaller than that for conventional radiators, it starts to heat the environment faster.

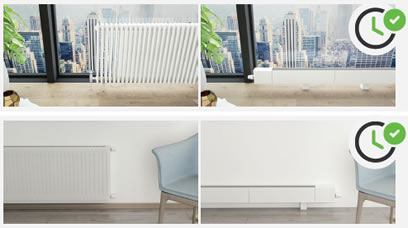

Our radiator occupies the less volume from the space or room floor area compared to other heating systems.

The heat capacity of the radiator under different conditions:

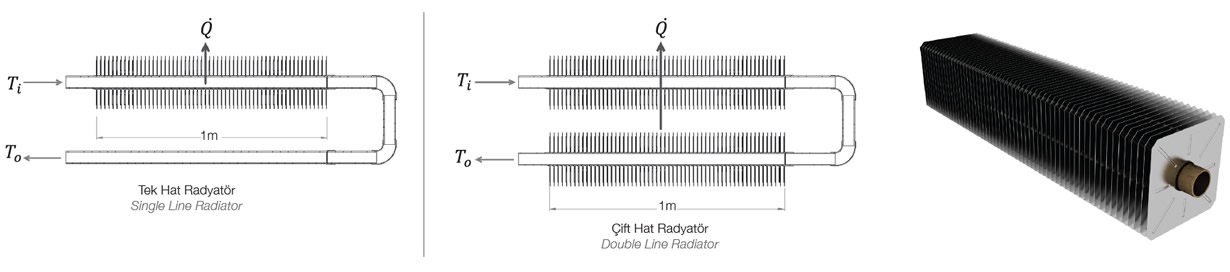

Specific thermal capacity of single line finned tube radiator W⁄m

Heating load of the room, W. (From the architect’s plan)

Radiator inlet temperature of the hot water °C

Radiator outlet temperature of the hot water °C

Air temperature of the room °C

Elements that share the quality of room heating by a radiator:
location of the radiator in the room, design of the building and boiler (kombi) selection.

Specific thermal capacity in W⁄m depending on the water inlet temperature and the room temperature for the single line radiator
	70	65	60	55	50
16	370	320	275	230	190
18	350	300	255	215	170
20	325	280	240	195	155
22	305	260	220	175	140
24	285	240	200	160	125
selection for thermal comfort and fuel saving: it is recommended in the range of 70-60 °C for finned tube length calculation, 60-50 °C for radiator operation setting.
